Problem

Modernize and build a scalable Data Warehouse for Multiple Teams using a cloud-native. Key challenges include:

  • Inconsistent data sources: Sales data spread across transactional systems, Firestore, and external feeds.
  • Lack of actionable insights: Difficulty measuring promotion ROI, territory performance, and customer segments in real time.
  • Complex ETL maintenance: Existing pipelines are brittle and hard to orchestrate.

User Requirements

  1. Business Development Manager:
    • Analyze effectiveness of special offers and promotions on sales to inform future marketing decisions.
  2. Sales Manager:
    • Compare sales across territories and convert USD↔EUR to pinpoint top regions and assess currency impact.
  3. Customer Relationship Manager:
    • Perform real-time clustering of customers by purchase frequency and average order value (since 2013) to tailor loyalty programs.

Result

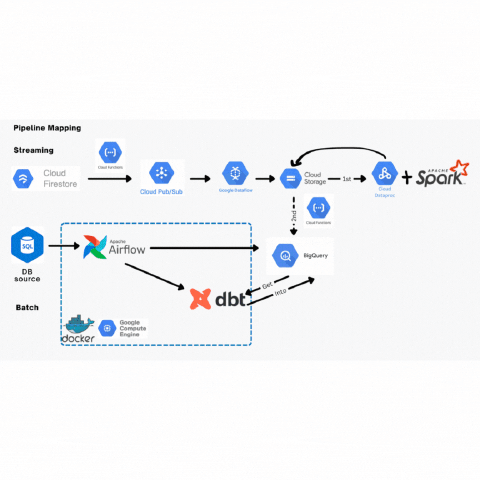

We designed a dimensional model in BigQuery and automated ELT/ETL with dbt, Airflow, and streaming components for real-time analytics.

Implementation

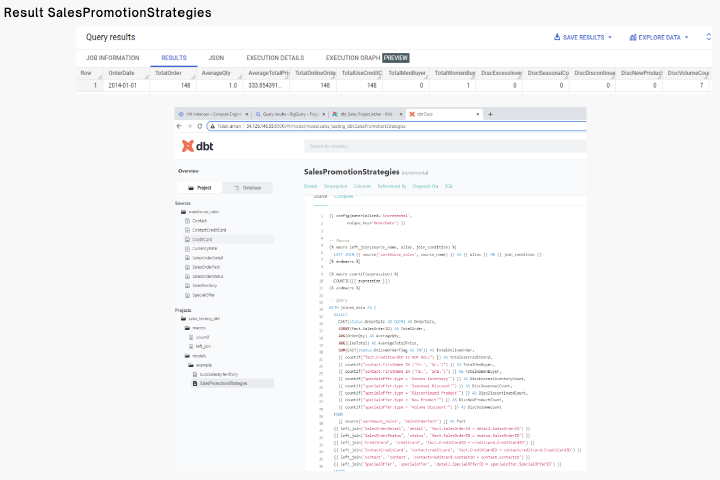

  1. Promotion Performance (Req. 1)
    • Created a daily promotion fact table capturing promotion IDs, types, and sales metrics.
    • Orchestrated with Airflow DAGs and transformed with dbt models.
IMG_1

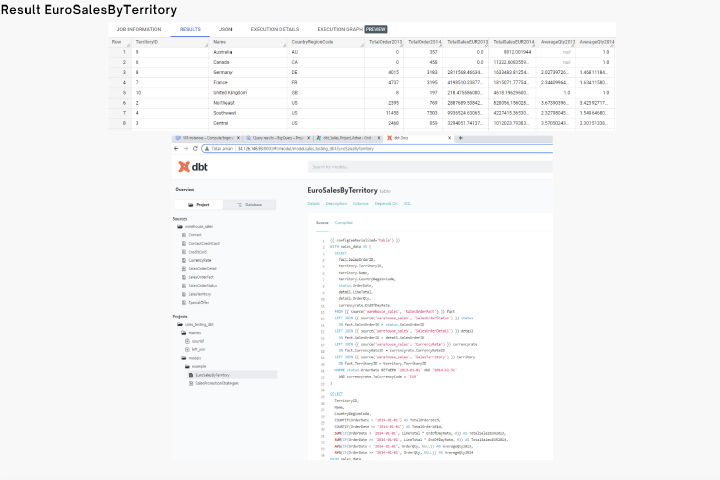

  1. Territory & Currency Analysis (Req. 2)
    • Built a territory dimension and sales fact table recording USD/EUR values.
    • Historic data from 2013–2014 loaded via Dataflow into BigQuery; currency conversion rates applied in dbt.
IMG_2

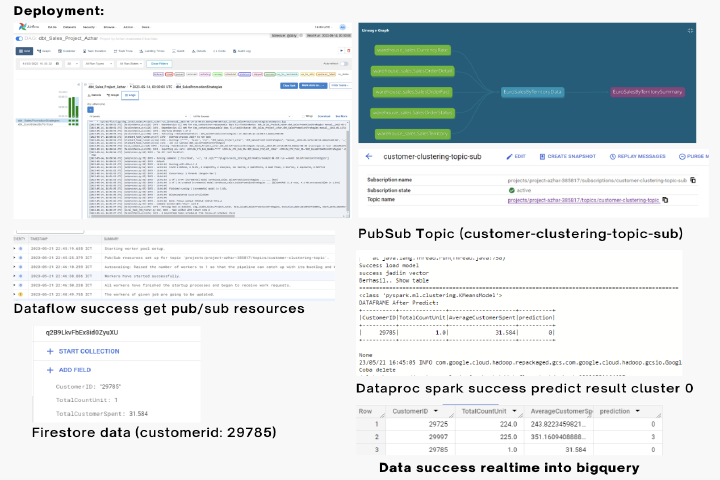

  1. Real-Time Customer Clustering (Req. 3)
    • Streamed Firestore purchase events through Pub/Sub into Dataflow, then into Dataproc Spark KMeans job.
    • Cluster assignments landed in BigQuery; Cloud Functions trigger retraining and reload customer segments.
IMG_3

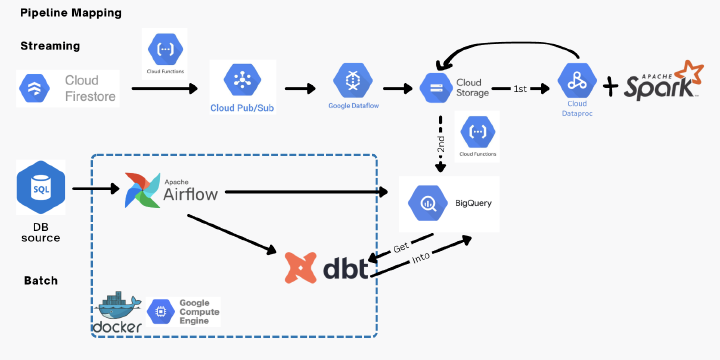

Tools & Technologies

  • Data Warehouse: BigQuery
  • Modeling & ELT: dbt, Airflow
  • Streaming & ETL: Pub/Sub, Dataflow, Dataproc (Spark)
  • Batch Processing: Cloud Functions, Docker containers
  • Storage & DB: Firestore, BigQuery
  • Orchestration: Airflow (GKE)
  • Development: Agile SDLC
IMG_4

NOTE: Due to a limitation in GCP’s free trial (which does not support streaming from Spark to BigQuery), i implemented a workaround using Google Cloud Functions to push streaming data into BigQuery.

Business Impact

  • Promotion ROI Visibility: Daily insights into offer effectiveness.
  • Territory Optimization: Identified top-performing regions and quantified currency effects.
  • Customer Retention: Dynamic segments enable targeted loyalty programs and higher repeat purchases.
